# Intro

OP HOLMGANG was a CTF hosted by Kripos, a special agency of the Norwegian Police Service, for the University of Oslo, but it was open to the public. Although it was a classic jepoardy-style CTF, it was special in the sence that every chall was connected up to a central incidenct. It was all made to look like an actual police investigation, which made the CTF a lot more fun. The Case Summary can be read here, case_summary.pdf.

This was the first CTF we competed in as a team, and we are very pleased with how well it went. Ending at 8th place, and possibly the highest scoring student team, was not something we expected beforehand.

## Scoreboard

Place Team Score
1 bootplug 130
2 coldboots 125
3 RumbleInTheJungle 125
4 give cake 115
5 The Long Quay 115
6 Corax 100
7 i773 100
8 FesseMisk 95
9 КГБ 92
10 støvelpropp 90

## Solves for our team

Challenge Category Value Time
Solve me first Start here 0 September 21st, 10:01:59 AM
ChatTomato - Get access Chat 5 September 21st, 12:59:37 PM
ChatTomato - Fetch contents Chat 5 September 21st, 1:00:30 PM
Password match - Belongs to whom? Password 7 September 21st, 1:02:36 PM
Where’s the money hidden - Phone number Location 3 September 21st, 1:30:14 PM
Where’s the money hidden - Address Location 4 September 21st, 1:51:58 PM
Where’s the money hidden - Location Location 3 September 21st, 2:20:53 PM
Be concrete - Methods Chemistry 3 September 21st, 2:34:49 PM
Be concrete - Afterthought Chemistry 3 September 21st, 2:38:42 PM
Be concrete - Conclusion Chemistry 4 September 21st, 2:49:27 PM
Documents schmockuments - Comparison Forgery 5 September 21st, 5:00:39 PM
Credential Custodian Reversing 10 September 21st, 6:27:26 PM
Criminal polyglot Language 10 September 21st, 6:49:34 PM
Needle in the haystack Logs 10 September 21st, 10:09:36 PM
Greedy Grafana Governor - Announcement date Gain access 5 September 21st, 11:13:16 PM
Documents schmockuments - Authenticity Forgery 5 September 22nd, 8:34:05 AM
Free space Open source intelligence 10 September 22nd, 9:55:55 AM

## Credential Custodian

Credential Custodian is a program found on IVANOVICH’s computer. It includes a ciphertext and a clue that he might be hiding a bip39 seed phrase.

### Solution

Credential custodian is a program that has two functionalities. Firstly it can generate a random password. Secondly it can encrypt a text-string with the random password, and later retrieve the secret text string if you have the password.

Looking through the first third of the program we can spot two of the essential clues to crack this challenge

 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 #!/usr/bin/env python3 ''' 2010-05-04: Here is the password manager you wanted; Start using it TODDAY! 2010-05-03: Implemented OWN generate_password function. Probably secure. 2010-05-02: Started development. Stole most of the code from hackexchange. ''' import sys import string import random import time import base64 def generate_password(length=50): '''Return an UNPREDICTALBE password of given length''' random.seed(int(time.time())) characters = string.digits + string.ascii_letters password = '' for i in range(length): offset = random.randrange(0, len(characters)) password += characters[offset] return password ...

We can quickly notice that generate_password uses the current time as their seed.

A seed is “the starting point” of randomness in computers, and using the same seed in the same generator will always produce exactly the same results.

We can also see that there are a few time stamps at the start of the file, guiding us to what time IVANOVICH might have generated their password.

The time.time() function gets the current unix epoch time in seconds since 1.jan 1970 00.00 GMT.

Knowing the timestamps from when the program was created, we started to modify the program to be able to bruteforce the password. We know that the password was originally generated after the 3rd of May, probably between the 3rd and 4th of May.

Using a unix epoch time calculator we found our starting second and approximated an ending second as well. Brute forcing on a modern computer is quite fast as long as it isn’t programmed in obviously inefficient ways. In our example we included quite a few extra hours on either side resulting in over 250 000 combinations to be brute forced, and the complete program used 36 seconds.

We edited generate_password() to include custom numbers as seeds rather than time.time():

 1 2 3 4 5 6 7 8 9 def generate_password(t, length=50): '''Return an UNPREDICTALBE password of given length''' random.seed(t) characters = string.digits + string.ascii_letters password = '' for i in range(length): ...

In the running part of the code we started a brute force of all seeds and tried to decrypt the ciphertext with the generated passwords. Then we only printed the decoded “plaintext” that included printable characters, which turned out to be quite a few.

It would be possible to search out the flag only looking at the output, but further filtering was possible. Knowing that it might be a BIP39 seed phrase the correct plain text should have 12 words. Looking for a minimum of 5 words was done like this if len(message.split()) > 5:, and that was enough to filter out the correct flag.

 1 2 3 4 5 6 7 8 9 10 11 def main(): if sys.argv[1] == 'generate': for t in range(1272848461,1273104061): message = show_secret(generate_password(t).encode()) if message.isprintable(): print(message) if len(message.split()) > 5: likely = message print(likely)
 1 2 3 4 5 6 7 8 9 10 11 12 Up^*"VtP|HI'Heg&Z1dH!ywG4@fkUvu|rt]y]ZQ)GFhiQQK^i cPB#uj{\xcO>KdA+~fPsXAId26PJaGXqK[7~eAyHd{DId56Lyu @}u!YyhWF6\=k9;iz,'W?PFKX-_Yeyuhhf6QhHPw6m&79C[MhI nPo>{QL!\IF95cM\# nI?"CUc+qX_]bt]0|wSDPf9 mMX-eth qai$}u4T|^o.qiZBV$Le?GKP18zzPx_Gwrsgjz6If=;uJvTl}Q lB\4GkG\LjXCMFyTs?vR:gpEr;DT]{{g]a(%*]DC4h)D{e/ut) UbI%SK92VPf@j>a_l4dZ[QAN;'CT}HeZir,QGCR73IHH=ZTusL wTh<\ll3T7D:jFjJU'RR=/pA4"B#se^}w$tWrzOs#i7mquVuq* _JBap57RY4_$dkX@|"|%6&xdm/akPWgwqd!J(^4r*=&7pW9xu} van use aim leg wall deal sad air put wide act pen

### Flag

van use aim leg wall deal sad air put wide act pen

### Files

credential_custodian.py

credential_custodian_solved.py

# Language

## Criminal polyglot

A wiretap has intercepted a call from Sergei Ivanovich’s telephone number, see the wav file in the case folder. Sergei talks with two culprits and the audio is believed to contain information that can identify the manufacturer of the faulty pipes.

The flag is an international phone number with no spaces.

Example: +4723208000

wav.wav

### Solution

In the wire tape he said the phone number in romanian, and afterwards mentioned the +40 in polish.

### Flag

 1 +40 21 314 54 13

## Match - Shredder

A search on the premises of KALLESTAD’s employer turned up some interesting shredded paper strips. Looks like someone tried to shred a password written on a post-it note. We’re not sure if all the pieces were recovered. Can you piece them together?

A photo of the shredded paper strips can be found in the case folder.

Example: V3ryS3cur3PaZZw0rd

### Solution

The photo of the shredded paper strips was clearly the most important hint we got.

One might say that you usually have two methods of solving a challenge. The smart and universal solution that solves the challenge every time in the most effective way, and there is the simple way that might be dumber, but you’ll make it work either way. The first one will often require a lot of work to get going, so we chose the “simple, lets just do it”-approach. Printing out the paper, cutting out the pieces and solving it like a ordinary puzzle.

From this solution we considered a few different spellings, and we had to get it right as we only had 3 guesses to submit the flag.

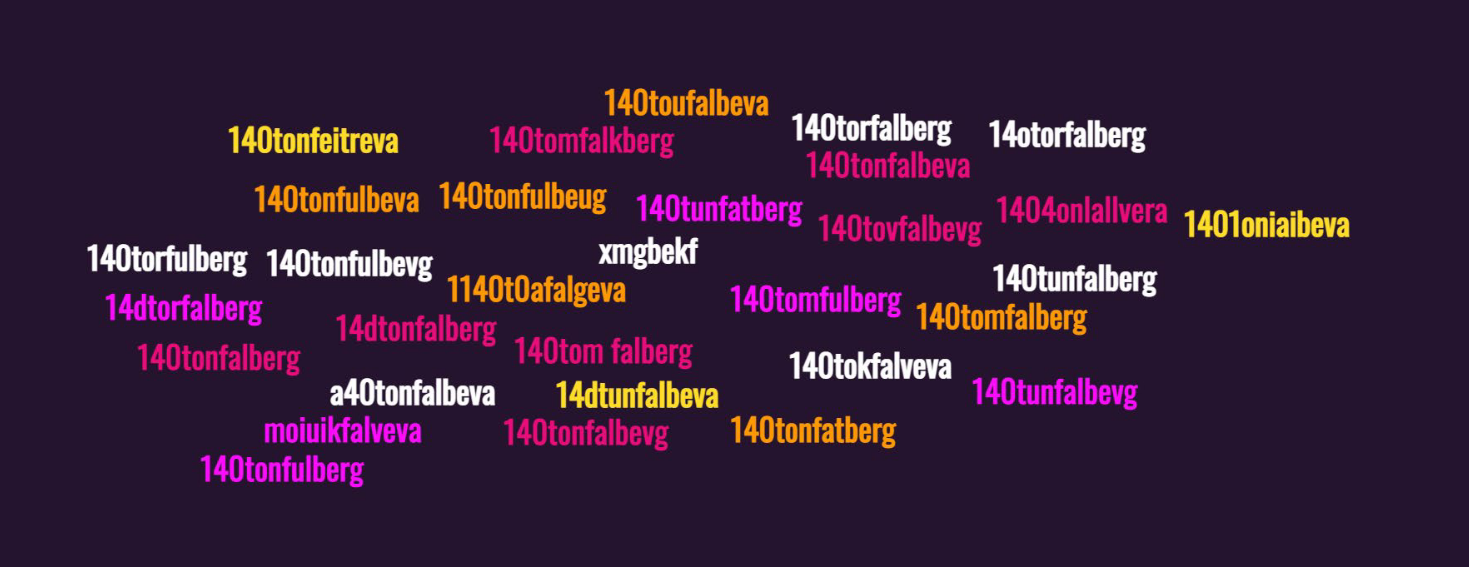

The organizers showed of after the event that they had a ton of different spellings submitted. Some shown below.

After having tried two passwords and failling twice, we looked for more evidence to back up what our last submission would be.

This image gave us the final clue.

140 Ton Fatberg was an article on his working dashboard with a link to the article. https://www.businessinsider.com/this-130-tonne-fatberg-has-been-discovered-under-the-streets-of-east-london-2017-9?r=US&IR=T

140TonFatberg

## Match - Belongs to whom

This was a followup-challenge to Match - Shredder. We have not saved the exact challenge text, but the challenge was to figure out the password of 140TonFatberg. We were given a shadow-file extracted from Kallestads computer.

The flag is the user

example: uid123

### Solution

The contents of shadow looks like this.

 1 2 3 4 5 6 7 8 9 10 11 12 13 14 ... uid269:$apr1$hLPQ2STl$VY28dnGq.a.Yv6L.hsm5f1:18298:0:99999:7::: uid270:$6$OAnyQFwNdH$u8bjf2h8f8QeEKx9jokjAtlx.t6dc7Tn3iUE/qzuVNrFcjOKwUEPRF1XF5ktCD70CptUmgYwrf0a4wBGIEJ9O0:18226:0:99999:7::: uid273:$apr1$YI1s8plV$hzbpGy.XacyX8.fWTD9GY/:18280:0:99999:7::: uid274:$apr1$FOfSgJFX$reWulZST7BNPJPt4S8bY90:18291:0:99999:7::: uid275:$5$gizTwIB5uM$7jRzJbk9XgzyOcOY.KLO1Q5aGrYei7WIDwNjfaICN21:18273:0:99999:7::: uid276:$apr1$cyOzOE55$dZ4jjtY9MQYgj6CT5weJd/:18278:0:99999:7::: uid277:$apr1$8apMktaJ$c4vk2A.s81CdayFF7wyUP/:18213:0:99999:7::: uid278:$1$0ksdhyfC$pis7jlpvCysyy/Zdauqs./:18230:0:99999:7::: uid280:$apr1$OsoDazfU$UVDJnQ4WBqT4ddWw1wz5o0:18221:0:99999:7::: uid281:$1$KilvYCzr$mmRJriApddtoJsXkBBEON.:18268:0:99999:7::: uid282:$5$zjcoxLw5NE$D8jcVmEBwXwIpSK4hdf0VuMyHVoTvOnYJfYSwziI7a5:18217:0:99999:7::: uid283:$apr1$YbAYwnlm$CNNrvMWTldapx5bDcMbg9.:18213:0:99999:7::: ...

Firstly we tried to use john (the ripper) to crack the shadow-file with only the given password in the wordfile, but john raised a lot of unclear warnings and didn’t produce the correct result.

 1 2 3 4 5 6 7 8 9 10 11 12 $john shadow --wordlist=/tmp/wordlist.txt Warning: hash encoding string length 37, type id$a appears to be unsupported on this system; will not load such hashes. Warning: only loading hashes of type "crypt", but also saw type "md5crypt" Use the "--format=md5crypt" option to force loading hashes of that type instead Loaded 192 password hashes with 192 different salts (crypt, generic crypt(3) [?/64]) Remaining 191 password hashes with 191 different salts Will run 8 OpenMP threads Press 'q' or Ctrl-C to abort, almost any other key for status 0g 0:00:00:00 100% 0g/s 1.785p/s 341.0c/s 341.0C/s 140TonFatberg Session completed \$

A lot of unclear problem solving was applied and nothing gave results.

In the end we appended the known password to a short separate passwordlist such that the new file included 50 known wrong passwords and one known correct password.

This made john function correctly and gave us the correct result.

 1 2 john shadow --wordlist=pass.txt > 140TonFatberg (uid224)

uid224

# Chat

## ChatTomato - Get access

### Description:

A suspicious image was found on KALLESTAD’s computer. Look in the case folder under Search and seizures. We suspect the image contains relevant information for accessing a darknet service listed at okskqu2ypqewyqk2igdath7zylsayqucdjeztlha3jvtelcc4pncshid.onion, but we are unable to extract it from the picture.

Example: SomeUser

### Solution

Bitplanes, photoshop, qrazybox

We used phtoshop to make the image more viewable.

Then we manually recreated the QR code in https://merricx.github.io/qrazybox/

Decrypted QR code:

user=PipeDigger pass=140TonFatberg

PipeDigger

## ChatTomato - Fetch contents

### Description

Accessing the ChatTomato service is easy once you have the URL, username and password combo. Log in and get hold of the chat contents. We’re interested in the first user that KALLESTAD chatted with.

Example: SomeUser

### Solution

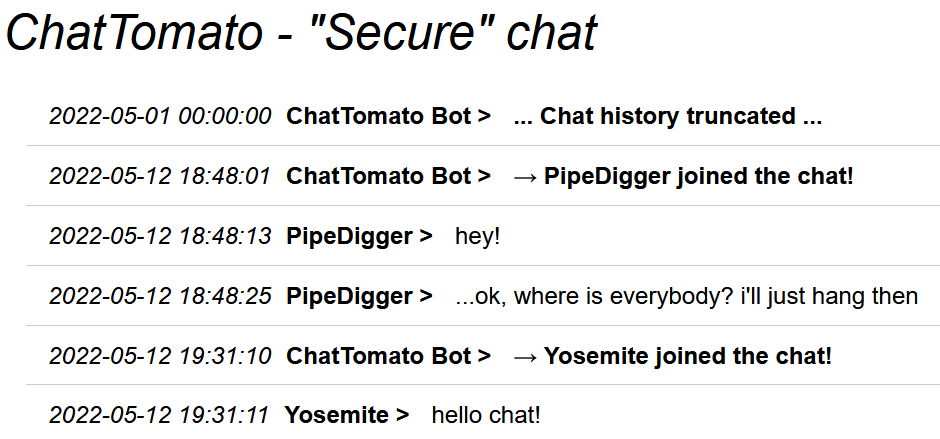

Logged in to Onion site with user=PipeDiggerand pass=140TonFatberg

Yosemite

chat.pdf

## Gain access

### Greedy Grafana Governor - Announcement date

The revenue and related announcements is available in a Grafana database. The URL is found in the case folder. We don’t have access but maybe you can get hold of the database somehow?

Can you look for any announcements regarding decreasing revenue and report back any relevant dates.

Tha flag is a date in ISO-format: YYYY-MM-DD.

Example: 2022-01-01

### Solution

Googling around we found that grafana had a path traversal vulnerability. We used metasploit to download the database and find the flag.

Metasploit

msf6 auxiliary(scanner/http/grafana_plugin_traversal) > set filepath /var/lib/grafana/grafana.db

2010-05-01

## **Greedy Grafana Governor - Password**

Looking into the “grafana.db” we found in previous task. To make it easier to search around in the database, I downloaded “DB Browser for SQlite”, and opened the .db file there. Under table “User”, we find a hashed password with salt and rand to user IVANOVICH.

# Location

## Where’s the money hidden - Phone number

### Description

According to photos in the cases folder, Mr and Mrs Mørkved have been dining at a restaurant. What is the phone number of the restaurant?

The flag is the phone number, including country code, but without any signs or pauses.

Example: 479988776655

Googling ersete security club resturant croatia we find this link:

https://www.sail-croatia.com/set-sail/sailing-croatian-restaurants-route

Here we see this picture:

Which is in the same location. Doing a reverse image search on this image we find it is from the following restaurant: Konoba Bako

A resturant really close by Konoba Jastožera, which seems to be the correct resturant.

385919842513

## Where’s the money hidden - Location

### Description

The flag is the GPS coordinates in decimal degrees form:

• Latitude first and then longitude: lat, lon
• Use a dot (.) as the decimal point in your coordinates: 12.1234
• Coordinates can be negative: -12.1234, -10.3456
• Use a comma and/or space to separate lat and lon: 12.1234, 23.2345
• Coordinates should have FOUR decimal places

Example: 39.0581, -1.9872

### Solution

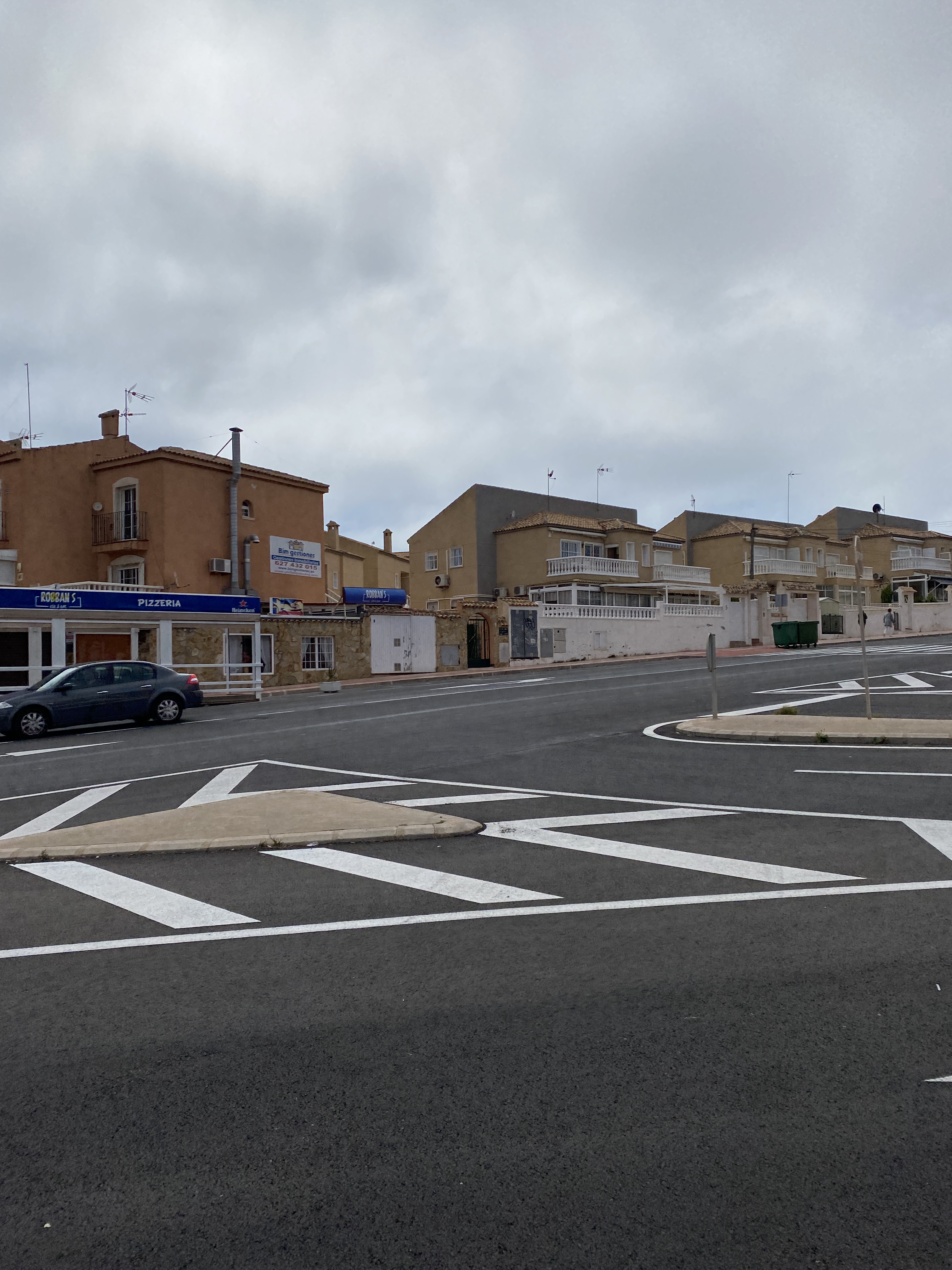

On the one picture we can see a Swedish restaurant and their phone number. Googling them gave us a address in Torrevieja Spain which matched up with the photos. We had the correct location. In the police report it is stated that Kallestad texted

“Hi Sergei. You know the street name, and the number of the apartment with the red ring on it, is 22. Hope to see you soon, Robbans Pizzario is near by and very nice It’s about a 500m walk”.

Thus we know it’s about a 500m walk. We can also see from the pictures that it has a red pavement, is located in a small hill, has a right turn and has a few tall apartments in the background. Searching the area we found the tall apartments. Further searching around that area, we found the red pavement and a right turn, which turned out to be the correct position of the photo. Opening google maps and right-clicking on the balcony from the picture gave the correct coordinates.

38.0045, -0.6536

## **Where’s the money hidden - Address**

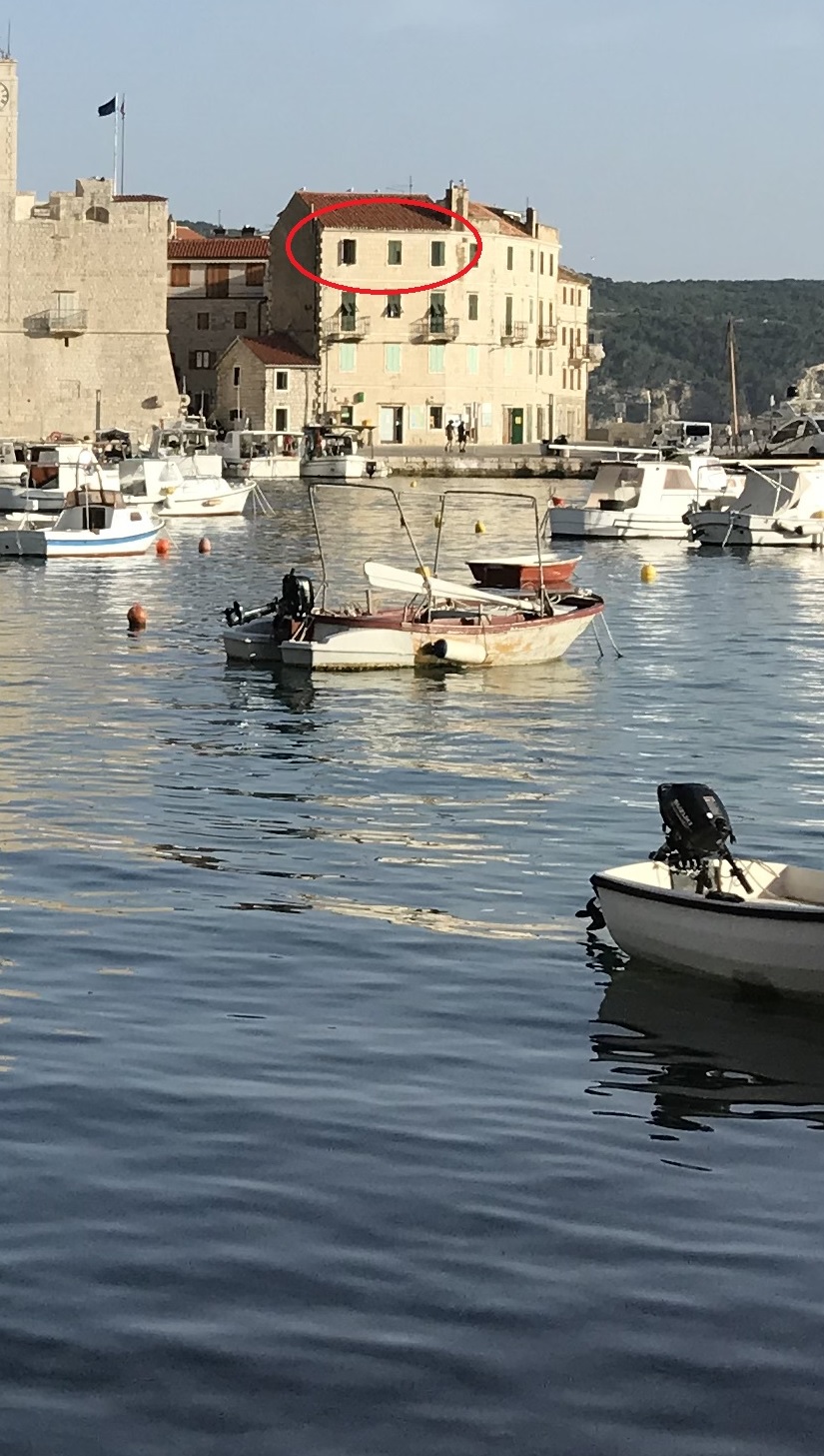

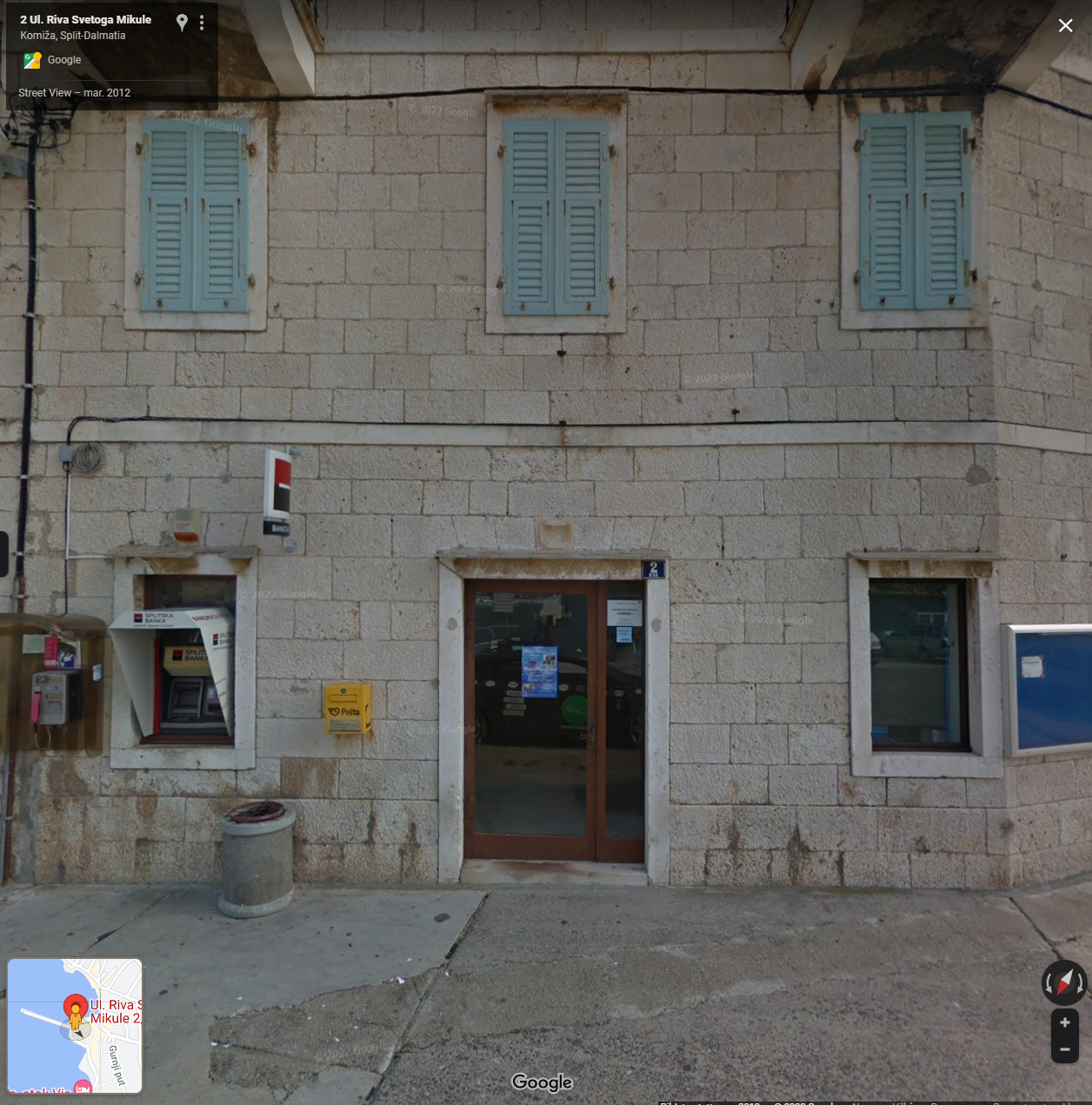

We found a picture of the watchtower and the appartment in the task “Where’s the money hidden - Phone number” - and figured out this was in KOMIŽA, Croatia. Using Google Maps, we navigate to the watchtower, and from there look at pictures nearby. The flag was found on this picture

2
